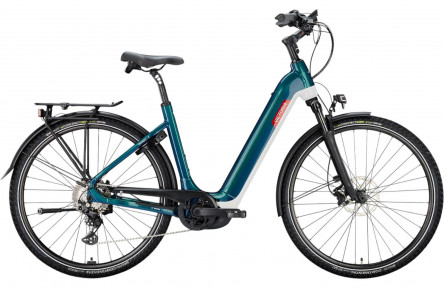

VICTORIA Electric trekking bike Manoc 4 №1 28"/54cm-L/10/flipflop petrol/02920230

Name: VICTORIA Electric trekking bike Manoc 4 №1 28"/54cm-L/10/flipflop petrol/02920230
SKU: 02920230
Price: 4199.00 EUR
Availability: OutOfStock

0 feedback

Vendor code: 02920230

VICTORIA Electric trekking bike Manoc 4 №1 28"/54cm-L/10/flipflop petrol/02920230

Aandrijfsysteem: BOSCH Performance Line CX
Aandrijfvariant: middenmotor
Aandrijving: kettingaandrijving
Accucapaciteit: 625.0 Wh
Bosch Smart systeem: ja
Bovenbuis: 646 mm
Categorie: Trekking-fiets
E-bike: ja
Frame-vorm: wave
Framehoogte: 54 cm
Framemaat: L
Geslacht: dames
Hoek stuurbuis: 69.0 °
Hoofdkleur: groen
Kleurnaam fabrikant: flipflop petrol
Liggende achtervork: 483 mm
Materiaal 1: aluminium
Maximaal belastbaar gewicht: 170 kg
Motorvermogen: 250 W
Ondersteuning: tot 25 km/h
Reach: 438 mm
Remsysteem: hydraulische schijfrem
Schakelnaam: 1x10-Gang SHIMANO "Deore"
Schakelratio: 1x 10-speed
Secundaire kleur: zwart
Stack: 668 mm
Stuurbuis: 180 mm
Type schakelsysteem: derailleurversnelling
Uitrusting: spatborden
Veerweg voorvork: 80 mm
Versnellingen: 10-speed
Wielbasis: 1280 mm
Wielmaat: 28 "
Zitbuis: 540 mm
Zithoek: 72.0 °
Accu: BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh
Achterderailleur: SHIMANO "Deore RD-M5130"
Achterlicht: CONTEC „TL-335 E-Stop“, mit Stoplicht
Bagagedrager achterop: MASSLOAD ALU-GEPÄCKTRÄGER MIK-System
Banden achterwiel: CONTINENTAL "Contact Plus" 50-622
Banden voorwiel: CONTINENTAL "Contact Plus" 50-622
Bracketset: BOSCH
Cranks: FSA "CK-745", Gen.4, 170 mm
Display: BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe
Frame: Bosch-Intube-Frame, Aluminium 6061
Grepen: CONTEC "Merge Trekking Ergo"
Ketting / riemen: SHIMANO "CN-LG500"
Kettingblad / riemschijf: FSA, 38 T
Kettingscherm: HESLING "Velo" Bosch Gen.4
Koplamp: CONTEC "Dlux 80 E+" 80 Lux
Laadapparaat: BOSCH 4 Ah
Motor: BOSCH BES3 "Performance Line CX", 36 V, 250 W
Naaf achterwiel: FORMULA "EHL-148S"
Naaf voorwiel: FORMULA "DC71", 15x100 mm
Pedalen: UNION "SP-828", Alu, Antislip
Rem: TEKTRO "HD-T390"
Remgreep: TEKTRO "HD-T390"
Remote: BOSCH "BRC3600"
Remschijf achterwiel: TEKTRO "TR180-45", 160mm, Center-Lock
Remschijf voorwiel: TEKTRO "TR180-45", 180mm, Center-Lock
Ringslot: CONTEC "Powerloc L AZ"
Sensor: Trapkracht-meting im Motor + snelheidssensor
Spaken: Niro, 2 mm, schwarz
Spatborden: CURANA "Apollo", 60mm, schwarz matt, Spoiler
Standaad: URSUS "King2", Hinterbau, 40 mm, verstellbar
Stuur: ERGOTEC " Rise Bar 50 Comfort", 720 mm, Ø 31,8 mm, schwarz, Level 6
Tandwiel / riemenschijf: SHIMANO "CS-LG400-10 " 11-43 Z
Velgen: MACH "650 Disc"
Versteller: SHIMANO "Deore" SL-M5130-R10"
Voorbouw: ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Voorvork: RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt
Zadel: SELLE ROYAL "Orbis" Relax
Zadelpen: ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6

Kleur:Flipflop-petrol

Vermogen accu:625 Wh

625 Wh

Framemaat:54

4 199 euro

Not available

Available soon

• Free shipping on new bicycles from 400 EUR • Used bicycles 55 EUR • Free shipping on new bicycles from 400 EUR • Used bicycles 55 EUR •

Specifications

Condition

New

Wheel diameter

28"

Waranty

2 years

Colour

Flipflop-petrol

Frame type

Women

Frame size

Fits the height

165-175

Frame material

Aluminium

Brake type

Hydraulic disc brakes

Fork type

Amortization

Transmission type

Derailleur

Rear sprockets

Cassette

Number of speeds

Power battery

625 Wh

Battery technology

BOSCH "PowerTube 625", Lithium-Ionen mit BMS, 625 Wh

Engine power

250 W

Top speed

25 km/h

Battery range

50 - 90 km

Motor

BOSCH BES3 "Performance Line CX", 36 V, 250 W

Display

BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe

Brand

VICTORIA

Weight

29.2 kg

Drive

Chain drive

Toptube

646 mm

Drive system

BOSCH Performance Line CX

Drive version

Middle motor

Frame shape

Wave

Bosch Smart System

Yes

Maximum load

170 kg

Steering tube angle

69.0 °

Chainstay

483 mm

Fork travel

80 mm

Steering tube

180 mm

Wheel distance

1280 mm

Reach

438 mm

Stack

668 mm

Seat tube

540 mm

Seat angle

72.0 °

Rear derailleur

SHIMANO "Deore RD-M5130"

Luggage rack

MASSLOAD ALU-GEPäCKTRäGER MIK-System

Rear tire

CONTINENTAL "Contact Plus" 50-622

Frame

Bosch-Intube-Frame, Aluminium 6061

Front tire

CONTINENTAL "Contact Plus" 50-622

Bottom bracket

BOSCH

Grips

CONTEC "MERGE Trekking Ergo"

Brakes

TEKTRO "HD-T390"

Crankset

FSA "CK-745", Gen.4, 170 mm

Brake handles

TEKTRO "HD-T390"

Spokes

Niro, 2 mm, schwarz

Front light

CONTEC "Dlux 80 E+" 80 Lux

Rear hub

FORMULA "EHL-148S"

Mud guards

CURANA "Apollo", 60mm, schwarz matt, Spoiler

Chain/belt

SHIMANO "CN-LG500"

Charger

Bosch 4 Ah

Front hub

FORMULA "DC71", 15x100 mm

Pedals

UNION "SP-828", Alu, Antislip

Sensor

Trapkracht-meting im Motor + snelheidssensor

Stand

URSUS "King2", Hinterbau, 40 mm, verstellbar

Chain ring/pulley

FSA, 38 T

Handle bar

ERGOTEC " Rise Bar 50 Comfort", 720 mm, ø 31,8 mm, schwarz, Level 6

Saddle

SELLE ROYAL "Orbis" Relax

Rims

MACH "650 Disc"

Chain guard

HESLING "Velo" Bosch Gen.4

Fork

RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt

Stem

ERGOTEC "Swell-R Ahead 70", ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer

Rear rotor

TEKTRO "TR180-45", 160mm, Center-Lock

Front rotor

TEKTRO "TR180-45", 180mm, Center-Lock

Seat post

ERGOTEC Patent "Hook Evolution", ø 31,6 mm, 15mm Setback, Alu, black, Level 6

Remote

BOSCH "BRC3600"

Cassette/ratchet

SHIMANO "CS-LG400-10 " 11-43 Z

Shifters

SHIMANO "Deore" SL-M5130-R10"

Lock

CONTEC "Powerloc L AZ"
