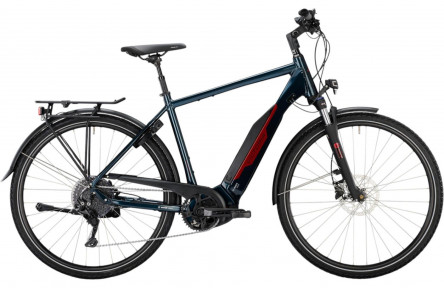

VICTORIA Electric trekking bike eTrekking 10.8 28"/48cm-S/10/dark night metallic/02976231

Name: VICTORIA Electric trekking bike eTrekking 10.8 28"/48cm-S/10/dark night metallic/02976231
SKU: 02976231
Price: 2699.95 EUR
Availability: OutOfStock

0 feedback

Vendor code: 02976231

VICTORIA Electric trekking bike eTrekking 10.8 28"/48cm-S/10/dark night metallic/02976231

Aandrijfsysteem: BOSCH Performance Line CX
Aandrijfvariant: middenmotor
Aandrijving: kettingaandrijving
Accucapaciteit: 500.0 Wh
Bosch Smart systeem: nee
Bovenbuis: 585 mm
Categorie: Trekking-fiets
E-bike: ja
Frame-vorm: Diamant
Framehoogte: 48 cm
Framemaat: S
Geslacht: heren
Hoek stuurbuis: 71.0 °
Hoofdkleur: blauw
Kleurnaam fabrikant: dark night metallic
Lengte: 1859 mm
Liggende achtervork: 468 mm
Materiaal 1: aluminium
Maximaal belastbaar gewicht: 140 kg
Motorvermogen: 250 W
Ondersteuning: tot 25 km/h
Reach: 406 mm
Remsysteem: hydraulische schijfrem
Schakelnaam: 1x10-Gang SHIMANO "Deore"
Schakelratio: 1x 10-speed
Stack: 645 mm
Standover hoogte: 801 mm
Stuurbuis: 160 mm
Type schakelsysteem: derailleurversnelling
Uitrusting: spatborden
Veerweg voorvork: 63 mm
Versnellingen: 10-speed
Wielbasis: 1108 mm
Wielmaat: 28 "
Zitbuis: 480 mm
Zithoek: 74.0 °
Accu: BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh
Achterderailleur: SHIMANO "Deore RD-M5130-GS"
Achterlicht: CONTEC „TL-335 E-Stop“, mit Stoplicht
Bagagedrager achterop: MIK-ALU-GEPÄCKTRÄGER "TA7653A" MIK-System
Banden achterwiel: SCHWALBE "Marathon", 50-622, Reflex
Banden voorwiel: SCHWALBE "Marathon", 50-622, Reflex
Bracketset: BOSCH
Cranks: FSA "CK-745", Gen.4
Derailleur-bevestigingshaak: Slider Dropout
Display: BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Frame: Semi-Integrated-Bosch-Frame, Aluminium 6061
Grepen: CONTEC "Tour Wing"
Ketting / riemen: SHIMANO "CN-LG500"
Kettingblad / riemschijf: FSA, 42T, megatooth
Kettingscherm: HESLING "Velo" Bosch Gen.4 schwarz matt
Koplamp: CONTEC "Dlux 80 E+" 80 Lux
Laadapparaat: BOSCH 4 Ah
Motor: BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Naaf achterwiel: SHIMANO "FH-M4050 ", Disc
Naaf voorwiel: SHIMANO "HB-MT400", QR 15, Disc, Center Lock
Pedalen: UNION "SP-828", Alu, Antislip
Rem: SHIMANO "BR-MT400"
Remgreep: SHIMANO "BL-MT401"
Remschijf achterwiel: SHIMANO "SM-RT30", 160mm, Center-Lock
Remschijf voorwiel: SHIMANO "SM-RT30", 180mm, Center-Lock
Ringslot: CONTEC "Powerloc M AZ"
Sensor: Trapkracht-meting im Motor + snelheidssensor
Spaken: 2,0 mm, Niro
Spatborden: CURANA "Apollo", 60mm, schwarz matt, Spoiler
Standaad: URSUS "King2", für Victoria Hinterbau, 40 mm, verstellbar
Stuur: ERGOTEC "Low Riser Bar", 720 mm, Ø 31,8 mm, schwarz
Tandwiel / riemenschijf: SHIMANO "CS-LG600-10 " 11-43 Z. silver
Velgen: MACH "630 KARMA Disc"
Versteller: SHIMANO "Deore" SL-M5130-R10"
Voorbouw: ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm
Voorvork: SUNTOUR "SF19-NEX-E25-C NLO", einstellbar, Lockout, 63mm Travel, Tapered, Disc, QR15
Zadel: SELLE ROYAL "ESSENZA" Italy, Moderate Male
Zadelpen: ERGOTEC Patent "SP10", gefedert, Ø 27,2 mm, Alu

Kleur:Dark-night-metallic

Vermogen accu:500 Wh

500 Wh

Framemaat:48

2 699.95 euro

Not available

Available soon

• Free shipping on new bicycles from 400 EUR • Used bicycles 55 EUR • Free shipping on new bicycles from 400 EUR • Used bicycles 55 EUR •

Specifications

Condition

New

Wheel diameter

28"

Waranty

2 years

Colour

Dark-night-metallic

Frame type

Man

Frame size

Fits the height

152-162

Frame material

Aluminium

Brake type

Hydraulic disc brakes

Fork type

Amortization

Transmission type

Derailleur

Rear derailleur

1x10-Gang SHIMANO "Deore"

Rear sprockets

Cassette

Number of speeds

Power battery

500 Wh

Battery technology

BOSCH Performance Line CX

Engine power

250 W

Top speed

25 km/h

Battery range

50 - 90 km

Motor

BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W

Display

BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe

Brand

VICTORIA

Weight

26.7 kg

Drive

Chain drive

Toptube

585 mm

Drive system

BOSCH Performance Line CX

Drive version

Middle motor

Frame shape

Diamant

Bosch Smart System

Maximum load

140 Kg

Steering tube angle

71.0 °

Chainstay

468 mm

Fork travel

63 mm

Length

1859 mm

Steering tube

160 mm

Wheel distance

1108 mm

Reach

406 mm

Stack

645 mm

Standover height

801 mm

Seat tube

480 mm

Seat angle

74.0 °

Rear derailleur

SHIMANO "Deore RD-M5130-GS"

Luggage rack

MIK-ALU-GEPäCKTRäGER "TA7653A" MIK-System

Rear tire

SCHWALBE "Marathon", 50-622, Reflex

Frame

Semi-Integrated-Bosch-Frame, Aluminium 6061

Front tire

SCHWALBE "Marathon", 50-622, Reflex

Bottom bracket

BOSCH

Grips

CONTEC "Tour Wing"

Brakes

SHIMANO "BR-MT400"

Crankset

FSA "CK-745", Gen.4

Brake handles

SHIMANO "BL-MT401"

Spokes

2,0 mm, Niro

Front light

CONTEC "Dlux 80 E+" 80 Lux

Rear hub

SHIMANO "FH-M4050 ", Disc

Mud guards

CURANA "Apollo", 60mm, schwarz matt, Spoiler

Derailleur hanger

Slider Dropout

Chain/belt

SHIMANO "CN-LG500"

Charger

Bosch 4 Ah

Front hub

SHIMANO "HB-MT400", QR 15, Disc, Center Lock

Pedals

UNION "SP-828", Alu, Antislip

Sensor

Trapkracht-meting im Motor + snelheidssensor

Stand

URSUS "King2", fÜr Victoria Hinterbau, 40 mm, verstellbar

Chain ring/pulley

FSA, 42T, megatooth

Handle bar

ERGOTEC "Low Riser Bar", 720 mm, ø 31,8 mm, schwarz

Saddle

SELLE ROYAL "ESSENZA" Italy, Moderate Male

Rims

MACH "630 KARMA Disc"

Chain guard

HESLING "Velo" Bosch Gen.4 schwarz matt

Fork

SUNTOUR "SF19-NEX-E25-C NLO", einstellbar, Lockout, 63mm Travel, Tapered, Disc, QR15

Stem

ERGOTEC "Sepia 50", ø31,8 mm, verstellbar, schwarz, 90mm

Rear rotor

SHIMANO "SM-RT30", 160mm, Center-Lock

Front rotor

SHIMANO "SM-RT30", 180mm, Center-Lock

Seat post

ERGOTEC Patent "SP10", gefedert, ø 27,2 mm, Alu

Cassette/ratchet

SHIMANO "CS-LG600-10 " 11-43 T. silver

Shifters

SHIMANO "Deore" SL-M5130-R10"

Lock

CONTEC "Powerloc M AZ"

Year

2022
