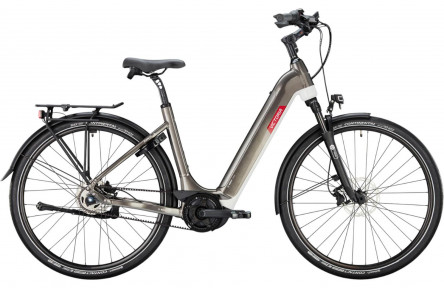

VICTORIA Electric trekking bike Manoc 3 №1 28"/50cm-M/5/quartz grey/02920404

Name: VICTORIA Electric trekking bike Manoc 3 №1 28"/50cm-M/5/quartz grey/02920404
SKU: 02920404
Price: 4499.00 EUR
Availability: OutOfStock

0 feedback

Vendor code: 02920404

VICTORIA Electric trekking bike Manoc 3 №1 28"/50cm-M/5/quartz grey/02920404

Aandrijfsysteem: BOSCH Performance Line
Aandrijfvariant: middenmotor
Aandrijving: riemaandrijving
Accucapaciteit: 625.0 Wh
Bosch Smart systeem: ja
Bovenbuis: 631 mm
Categorie: Trekking-fiets
E-bike: ja
Frame-vorm: wave
Framehoogte: 50 cm
Framemaat: M
Geslacht: dames
Hoek stuurbuis: 69.0 °
Hoofdkleur: grijs
Kleurnaam fabrikant: quartz grey
Liggende achtervork: 483 mm
Materiaal 1: aluminium
Maximaal belastbaar gewicht: 170 kg
Motorvermogen: 250 W
Ondersteuning: tot 25 km/h
Reach: 413 mm
Remsysteem: hydraulische schijfrem
Schakelnaam: 5-Gang SHIMANO "Nexus" Rücktritt
Secundaire kleur: zwart
Stack: 660 mm
Stuurbuis: 170 mm
Type schakelsysteem: naafversnelling
Uitrusting: Elektronische duwhulp
Veerweg voorvork: 80 mm
Versnellingen: 5-speed
Wielbasis: 1189 mm
Wielmaat: 28 "
Zitbuis: 500 mm
Zithoek: 72.0 °
Accu: BOSCH "PowerTube 625"
Achterlicht: CONTEC „TL-335 E-Stop“, mit Stoplicht
Bagagedrager achterop: MASSLOAD ALU-GEPÄCKTRÄGER MIK-System
Banden achterwiel: CONTINENTAL "Contact Plus" 50-622
Banden voorwiel: CONTINENTAL "Contact Plus" 50-622
Bracketset: BOSCH
Cranks: FSA "CK-602", 170 mm
Derailleur-bevestigingshaak: Slider Dropout
Display: BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe
Frame: Bosch-Intube-Frame, Aluminium 6061
Grepen: CONTEC "Merge Trekking Ergo"
Ketting / riemen: GATES "CDX"
Kettingblad / riemschijf: GATES "CDX", 46 Z.
Kettingscherm: CURANA "Chainguard Belt"
Koplamp: CONTEC "Dlux 80 E+" 80 Lux
Laadapparaat: BOSCH 4 Ah
Motor: BOSCH "Performance Line", 36 V, 250 W
Naaf achterwiel: SHIMANO Nexus 5 LL
Naaf voorwiel: FORMULA "DC71", 15x100 mm
Pedalen: UNION "SP-828", Alu, Antislip
Rem: TEKTRO "HD-T 390"
Remgreep: TEKTRO "HD-T 390"
Remote: BOSCH "BRC3600"
Remschijf achterwiel: TEKTRO "HD-T 390", 160 mm
Remschijf voorwiel: TEKTRO "HD-T 390", 180 mm
Ringslot: CONTEC "Powerloc L AZ"
Spaken: 2,0 mm, Niro, schwarz
Spatborden: CURANA "Apollo", 60mm, schwarz matt, Spoiler
Standaad: URSUS "King2", Hinterbau, 40 mm, verstellbar
Stuur: ERGOTEC " Rise Bar 50 Comfort", 720 mm, Ø 31,8 mm, schwarz, Level 6
Tandwiel / riemenschijf: GATES "CDX"
Velgen: MACH "650 Disc"
Versteller: SHIMANO Nexus 5
Voorbouw: ERGOTEC "Swell-R Ahead 70", Ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer
Voorvork: RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt
Zadel: SELLE ROYAL "Lookin HD Stonex", Moderate
Zadelpen: ERGOTEC Patent "Hook Evolution", Ø 31,6 mm, 15mm Setback, Alu, black, Level 6

Kleur:Quartz-grey

Vermogen accu:625 Wh

625 Wh

Framemaat:50

4 499 euro

Not available

Available soon

• Free shipping on new bicycles from 400 EUR • Used bicycles 55 EUR • Free shipping on new bicycles from 400 EUR • Used bicycles 55 EUR •

Specifications

Condition

New

Wheel diameter

28"

Waranty

2 years

Colour

Quartz-grey

Frame type

Women

Frame size

Fits the height

155-165

Frame material

Aluminium

Brake type

Hydraulic disc brakes

Fork type

Amortization

Transmission type

Hub gear

Rear derailleur

5-speed SHIMANO "Nexus" back-pedal brake

Rear sprockets

Sprocket

Number of speeds

Power battery

625 Wh

Battery technology

BOSCH "PowerTube 625"

Engine power

250 W

Top speed

25 km/h

Battery range

50 - 90 km

Motor

BOSCH "Performance Line", 36 V, 250 W

Display

BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe

Brand

VICTORIA

Weight

29.4 kg

Drive

Belt drive

Toptube

631 mm

Drive system

BOSCH Performance Line

Drive version

Middle motor

Frame shape

Wave

Bosch Smart System

Yes

Maximum load

170 kg

Steering tube angle

69.0 °

Chainstay

483 mm

Fork travel

80 mm

Steering tube

170 mm

Wheel distance

1189 mm

Reach

413 mm

Stack

660 mm

Seat tube

500 mm

Seat angle

72.0 °

Luggage rack

MASSLOAD ALU-GEPäCKTRäGER MIK-System

Rear tire

CONTINENTAL "Contact Plus" 50-622

Frame

Bosch-Intube-Frame, Aluminium 6061

Front tire

CONTINENTAL "Contact Plus" 50-622

Bottom bracket

BOSCH

Grips

CONTEC "MERGE Trekking Ergo"

Brakes

TEKTRO "HD-T 390"

Crankset

FSA "CK-602", 170 mm

Brake handles

TEKTRO "HD-T 390"

Spokes

2,0 mm, Niro, schwarz

Front light

CONTEC "Dlux 80 E+" 80 Lux

Rear hub

SHIMANO Nexus 5 LL

Mud guards

CURANA "Apollo", 60mm, schwarz matt, Spoiler

Derailleur hanger

Slider Dropout

Chain/belt

GATES "CDX"

Charger

Bosch 4 Ah

Front hub

FORMULA "DC71", 15x100 mm

Pedals

UNION "SP-828", Alu, Antislip

Stand

URSUS "King2", Hinterbau, 40 mm, verstellbar

Chain ring/pulley

GATES "CDX", 46 Z.

Handle bar

ERGOTEC " Rise Bar 50 Comfort", 720 mm, ø 31,8 mm, schwarz, Level 6

Saddle

SELLE ROYAL "Lookin HD Stonex", Moderate

Rims

MACH "650 Disc"

Chain guard

CURANA "Chainguard Belt"

Fork

RST 2022 "VIVair E-15 TNL", 700Cx300 mm, tapered, ohne Gewinde, 80 mm Federweg, PM-Disc, QPQ, Schutzblechaufnahme, schwarz matt

Stem

ERGOTEC "Swell-R Ahead 70", ø31,8 mm, 45 °, schwarz 120mm + 5mm Spacer

Rear rotor

TEKTRO "HD-T 390", 160 mm

Front rotor

TEKTRO "HD-T 390", 180 mm

Seat post

ERGOTEC Patent "Hook Evolution", ø 31,6 mm, 15mm Setback, Alu, black, Level 6

Remote

BOSCH "BRC3600"

Cassette/ratchet

GATES "CDX"

Shifters

SHIMANO Nexus 5

Lock

CONTEC "Powerloc L AZ"
